TOA
Meaning "Victorious, Win" in Maori
HIGHLIGHTS

Design for Performance | Engineered Compliance | Up to 32mm Tire Clearance

BLUE + CYAN (MOANA)
LIMITED EDITION

Produced in small quantities. Once sold out, never produced again.

Colour
3,799.00 USD
3,039.00 USD
Disc
BRAKE - SELECT SIZE
SIZE GUIDE
MANA2
Colour
0.00 USD
MANA BAR INCLUDED - SELECT SIZE
SIZE GUIDE
Your preferred selection out of stock? Contact us to receive stock updates.

Deposit option available for pre-order items. Contact us here.

  • Lifetime Warranty
  • Shipping & Taxes Included*
  • 30 Day Money Back Guarantee
  • 3,799.00 USD

*Shipping & Taxes Included (except in Japan & Canada where buyer pays local tax)

3,799.00 USD

UPGRADES
Colour
USD
SELECT SIZE
SIZE GUIDE
Your preferred selection out of stock? Contact us to receive stock updates.
FEATURES

Fully Integrated Cabling - Improved Aerodynamics - Clean and sleek aesthetic

32 mm Tire Clearance - Improved Traction - Improved Compliance

T47 (86.5) BB - Service Friendly BB - Improved Stiffness

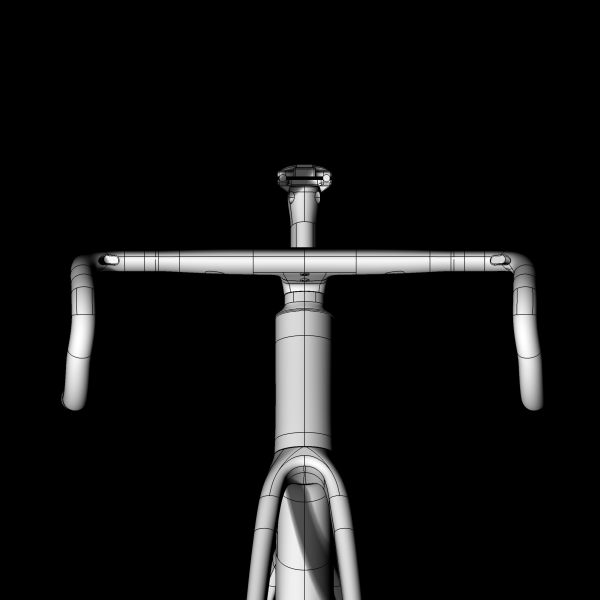

Aero Optimized - Kamm-Tail Downtube - Integrated Fork Crown - Integrated Cockpit

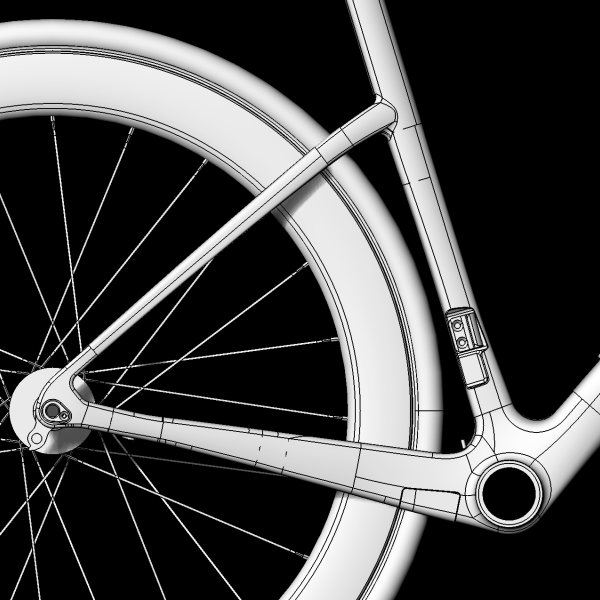

Dropped Seatstays - Improved Compliance - Stiffer Rear Triangle

Bike Fit Options - Can be used with MANA - Or with Standard Stem

AR/VR
SPECS

2-½ years in development with every detail carefully considered and meticulously executed, the TOA is the culmination of all the CHAPTER2 frames that have come before it. TOA which means "to be victorious, win" in Maori delivers an all-out, no-compromise carbon fibre race-ready frame platform designed, engineered, and manufactured to the most exacting standards.

Inspired by the TERE’s Performance All-Road DNA and the AO’s versatility, the TOA has all its cables/hoses tucked away from sight and the wind, creating an aerodynamically seamless transition between the MANA Bar and the TOA’s Kamm-Tail chassis.

Sporting a T47 Bottom Bracket for easy maintenance, the aluminium BB Shell works in unison with the high-tensile carbon carefully laid into the BB area to increase stiffness by up to 7.3% over the TERE. Additionally, the use of a Latex mandrel for the whole front triangle has increased the Headtube stiffness by 23.5% over the TERE for that out of the saddle and power to the pedals moment.

Other enhancements such as the bundled MANA Bar, Quick-Fit headset spacers, up to 32mm of tire clearance, vibration dampening Seatstays and Seatpost makes for a package that ticks all the right boxes.

Stiff Racing Frame: Improved Power Transfer & Precise Steering

Cable Integration: Improved Aerodynamics & Clean Aesthetics

Compact Kamm-Tail: Aerodynamic & Stiffness where Needed

Up to 32mm Tire Clearance: Increased Tire Options

Dropped Stays: Improved Compliance for Endurance Rides

T47 BB: Noise-free & Easy to Service

Disc Brakes Only: Improved Braking & Modulation

Frameset Only: Bespoke & Personal

Limited Edition: Exclusivity

Carbon:
100% Made in Japan by Toray
Frame 6 Sizes:
XXS, XS, S, M, L & XL
Fork Rakes (2):
XXS, XS, S (53mm offset) and M, L, XL (43mm offset)
Frame Weight:
1,099g (Disc) Size M +/- 3%
Fork Weight:
419g (Disc) Uncut +/- 3%
Seatpost Weight:
135g Size M +/- 3%
Handlebar/Stem (MANA):
395g (100-420mm) +/- 3%
Headset:
1.5” C2 Integrated System
Gear Shifting Type:
Mechanical & Electric Shifting
Electronic Shifting:
SHIMANO® Di2, SRAM® eTAP & Campagnolo® EPS compatible
Battery Type:
Di2 SM-BTR-2 or BT-DN300 and EPS V3 Battery Compatible
Tire Clearance:
30mm (ISO) & 32mm Practical
Brake Type:
Disc Only
Bottom Bracket:
Internal T47
Thru-Axle:
Flat Mount FR 12x100mm, RR 12x142mm, E-Thru M12x1.5mm
Safety Standard:
EN ISO 4210:2014
UCI Accreditation:
UCI Approved
Frame
Fork
Headset
Seatpost
Thru-Axles
Quick-Fit Spacers
MANA Handlebar
Saddle Rail:
6Nm
Seatclamp:
8-10Nm
Front Derailleur Hanger:
3-4Nm
Rear Derailleur Hanger:
2-3Nm
BB Cable Guide Cover:
1-2Nm
Water Bottle Cage Bolts:
2-3Nm
Thru-Axle:
10Nm
MANA:
6Nm

2-½ years in development with every detail carefully considered and meticulously executed, the TOA is the culmination of all the CHAPTER2 frames that have come before it. TOA which means "to be victorious, win" in Maori delivers an all-out, no-compromise carbon fibre race-ready frame platform designed, engineered, and manufactured to the most exacting standards.

Inspired by the TERE’s Performance All-Road DNA and the AO’s versatility, the TOA has all its cables/hoses tucked away from sight and the wind, creating an aerodynamically seamless transition between the MANA Bar and the TOA’s Kamm-Tail chassis.

Sporting a T47 Bottom Bracket for easy maintenance, the aluminium BB Shell works in unison with the high-tensile carbon carefully laid into the BB area to increase stiffness by up to 7.3% over the TERE. Additionally, the use of a Latex mandrel for the whole front triangle has increased the Headtube stiffness by 23.5% over the TERE for that out of the saddle and power to the pedals moment.

Other enhancements such as the bundled MANA Bar, Quick-Fit headset spacers, up to 32mm of tire clearance, vibration dampening Seatstays and Seatpost makes for a package that ticks all the right boxes.

Stiff Racing Frame: Improved Power Transfer & Precise Steering

Cable Integration: Improved Aerodynamics & Clean Aesthetics

Compact Kamm-Tail: Aerodynamic & Stiffness where Needed

Up to 32mm Tire Clearance: Increased Tire Options

Dropped Stays: Improved Compliance for Endurance Rides

T47 BB: Noise-free & Easy to Service

Disc Brakes Only: Improved Braking & Modulation

Frameset Only: Bespoke & Personal

Limited Edition: Exclusivity

Carbon:
100% Made in Japan by Toray
Frame 6 Sizes:
XXS, XS, S, M, L & XL
Fork Rakes (2):
XXS, XS, S (53mm offset) and M, L, XL (43mm offset)
Frame Weight:
1,099g (Disc) Size M +/- 3%
Fork Weight:
419g (Disc) Uncut +/- 3%
Seatpost Weight:
135g Size M +/- 3%
Handlebar/Stem (MANA):
395g (100-420mm) +/- 3%
Headset:
1.5” C2 Integrated System
Gear Shifting Type:
Mechanical & Electric Shifting
Electronic Shifting:
SHIMANO® Di2, SRAM® eTAP & Campagnolo® EPS compatible
Battery Type:
Di2 SM-BTR-2 or BT-DN300 and EPS V3 Battery Compatible
Tire Clearance:
30mm (ISO) & 32mm Practical
Brake Type:
Disc Only
Bottom Bracket:
Internal T47
Thru-Axle:
Flat Mount FR 12x100mm, RR 12x142mm, E-Thru M12x1.5mm
Safety Standard:
EN ISO 4210:2014
UCI Accreditation:
UCI Approved
Frame
Fork
Headset
Seatpost
Thru-Axles
Quick-Fit Spacers
MANA Handlebar
Saddle Rail:
6Nm
Seatclamp:
8-10Nm
Front Derailleur Hanger:
3-4Nm
Rear Derailleur Hanger:
2-3Nm
BB Cable Guide Cover:
1-2Nm
Water Bottle Cage Bolts:
2-3Nm
Thru-Axle:
10Nm
MANA:
6Nm
FRAME GEOMETRY

Note:

All dimensions are in mm unless otherwise noted

TOA XXS XS S M L XL
Stack 468 502 527 552 577 602
Reach 357 363 372 381 390 399
A. Top Tube 482 509 525 542 558 575
B. Head Tube 72 95 115 135 160 186
C. Seat Tube Angle 75° 74° 74° 74° 74° 74°
D. Head Tube Angle 70° 70° 72° 73° 73° 73°
E. Seat Tube 435 458 483 508 533 560
F. BB Drop 73 73 73 73 73 73
G. Rear Centre 408 408 408 408 408 408
H. Wheelbase 959 973 975 973 986 1002
I. Front Centre 562 576 578 576 589 605
J. Fork Offset 53 53 53 43 43 43
K. Seatpost Setback 10 10 10 10 10 10
Stem NA NA NA NA NA NA
Stand over 715 735 760 786 811 837
Rider Height <165 160-170 165-175 170-180 175-185 >180
Max. Tire Size 32 32 32 32 32 32
Rear Caliper Mount 25 25 25 25 25 25
MANA HANDLEBAR

Note:

All dimensions are in mm unless otherwise noted

Size 80x380 80x400 90x391 90x400 100x402 100x420 110x413 110x420 120x424 120x440 130x435
A. Stem 80 80 90 90 100 100 110 110 120 120 130
B. Width at Drops 380 400 391 400 402 420 413 420 424 440 435
C. Width at Hoods 360 380 371 380 382 400 393 400 404 420 415
D. Reach 70 70 70 70 70 70 70 70 70 70 70
E. Drop 128 128 128 128 128 128 128 128 128 128 128
F. Stem Angle 7.0° 7.0° 7.0° 7.0° 7.0° 7.0° 7.0° 7.0° 7.0° 7.0° 7.0°
